Triplett RJ45 & Coax Cable Tester with Inductive Tone Probe

Triplett RJ45 & Coax Cable Tester with Inductive Tone Probe

TTS PRICE: $126.09

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 3-5 DAYS

PRODUCT CODE: TRI-CTX200PA
QUANTITY:

PRODUCT DESCRIPTION

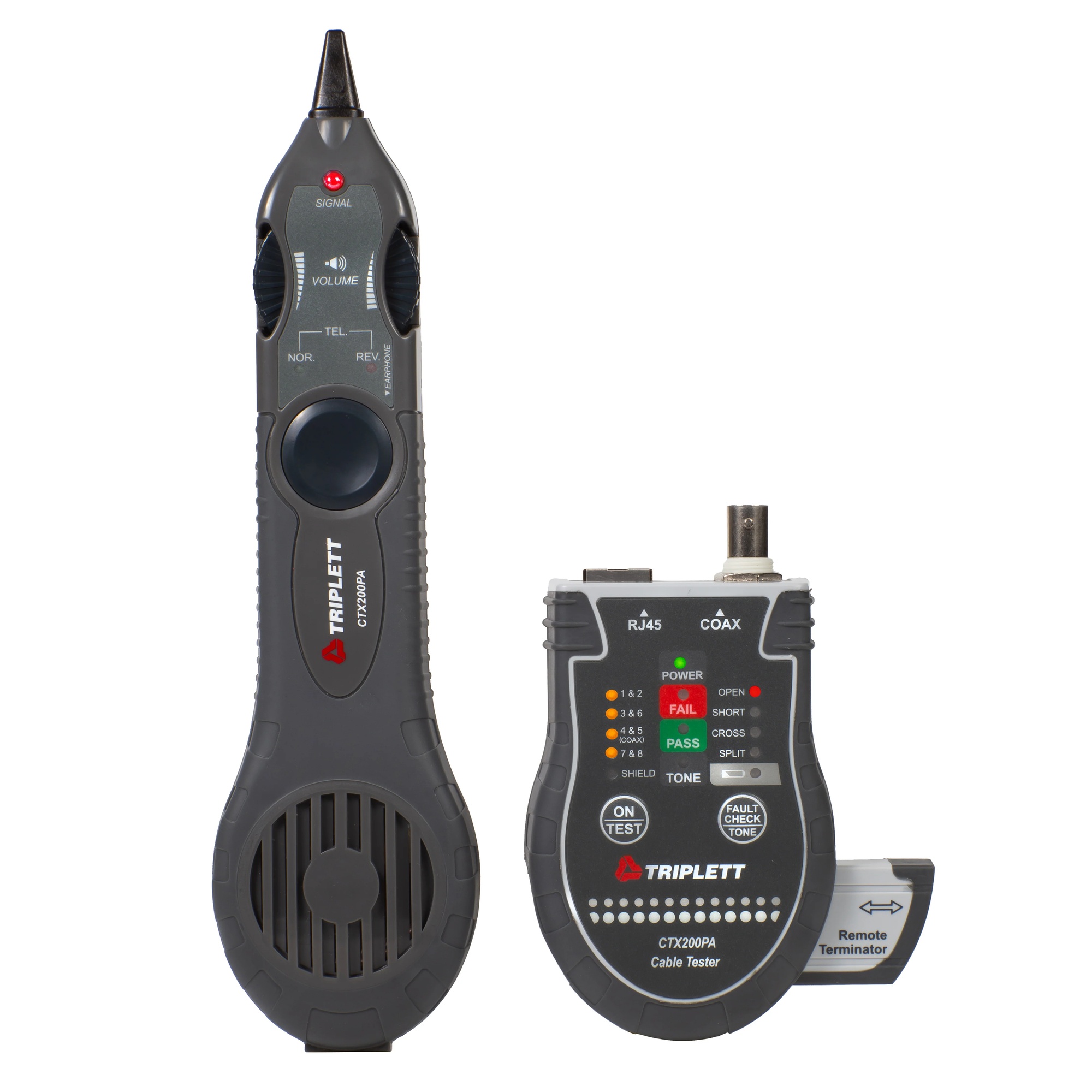

Triplett CTX200PA RJ45 & Coax Cable Tester with Inductive Tone Probe - TIA568 Pass/Fail

The Triplett CTX200PA pairs a rugged RJ45/coax cable tester with an inductive tone probe, so one kit verifies the run and finds it in the wall or the patch panel. It runs a complete TIA568 test on CAT5/6 cable with instant PASS/FAIL results for continuity, opens, shorts, reversals and split pairs, and each pair's status is shown on its own.

The tester is cushioned for life in a toolbox and stores its remote in a hidden drawer. Switch to tone mode and the included inductive probe traces twisted pair, LAN, multi-conductor, telephone/alarm and unpowered electrical wire.

Features:
  • Complete TIA568 test - continuity, opens/shorts, reversals and split pairs
  • Instant PASS/FAIL with each pair's status highlighted
  • Tests both RJ45 (CAT5/6) and coax cable
  • Built-in tone generator with inductive tracer probe
  • Traces twisted pair, LAN, multi-conductor, telephone/alarm and unpowered electrical wire
  • Ruggedized, cushioned housing with hidden remote storage drawer

    • Includes:
  • CTX200 cable tester with docked remote
  • Inductive tracer probe
  • BNC patch cable
  • CAT6 RJ45 patch cable
  • BNC terminator
  • (2) 9V batteries
  • Belt clip and case

    • Specifications:
  • Manufacturer: Triplett
  • Input Voltage/Current: 5VDC, 20mA max
  • Power: 9V battery (tester and probe)
  • Tester Dimensions: 2.8 x 1.4 x 4.1 in (70 x 36 x 104mm)
  • Probe Dimensions: 8.3 x 1.6 x 1 in (212 x 40 x 27.5mm)
  • Weight: tester 4 oz (112g), probe 2.8 oz (80g)
  • Warranty: 1 year
  • UPC: 614395002121
  • Model: CTX200PA

    • Related Products:
    Part #Triplett #Description
    BBR-33993399Fox & Hound Fox 2 & Hound 3
    BBR-33883388Fox & Hound HotWire Live Wire Tone & Probe
    BBR-CTX690CTX690Network Toner & Probe for Active and Inactive

    CTX200PA Datasheet
