New!  UtilityTool by Ripley Tools US01-7100 Hotstick Operable Adjustable Cable Stripper

Utility Tools US01-7100 Hotstick Operable


Alternative Views:


TTS PRICE: $982.99

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: RIP-US01-7100
QUANTITY:

PRODUCT DESCRIPTION

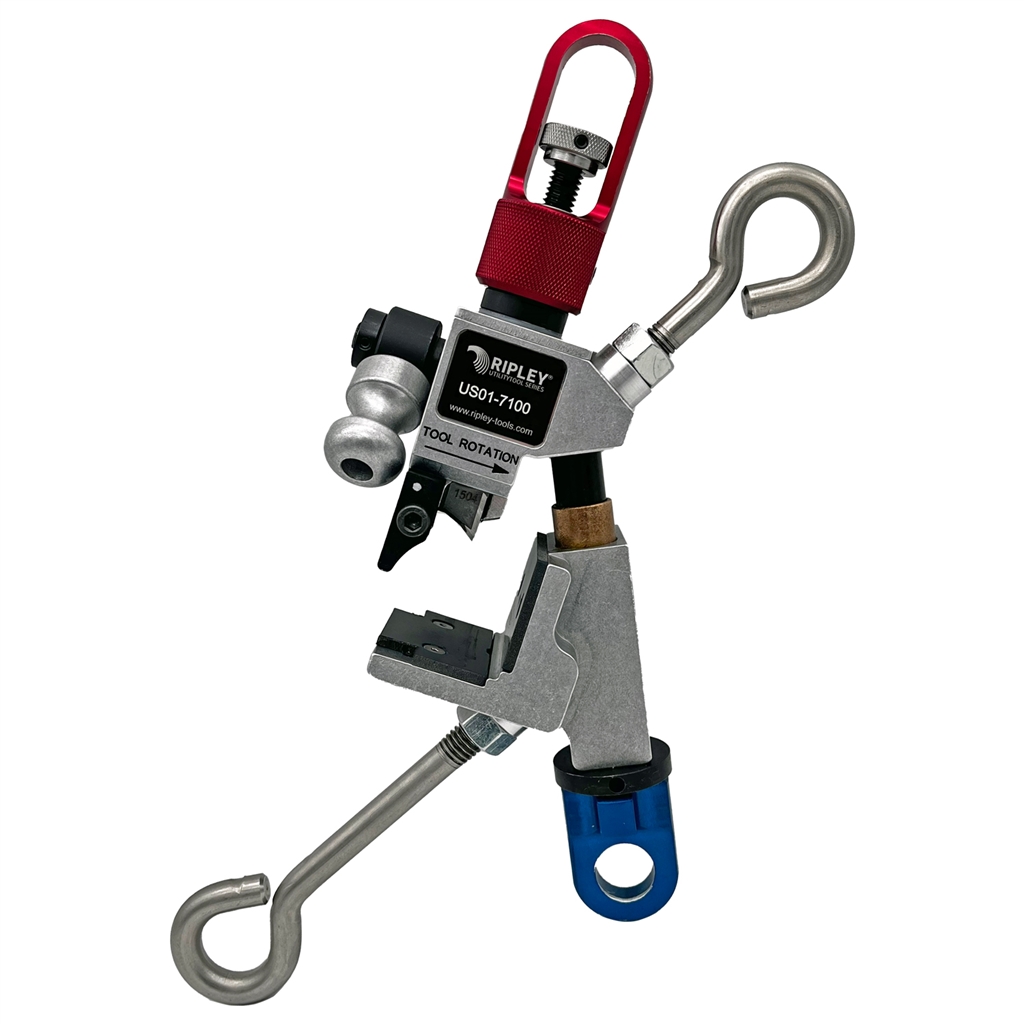

Ripley UtilityTool US01-7100 Hotstick Operable Adjustable Cable Stripper - 0.560"-2.5", 600V-35kV

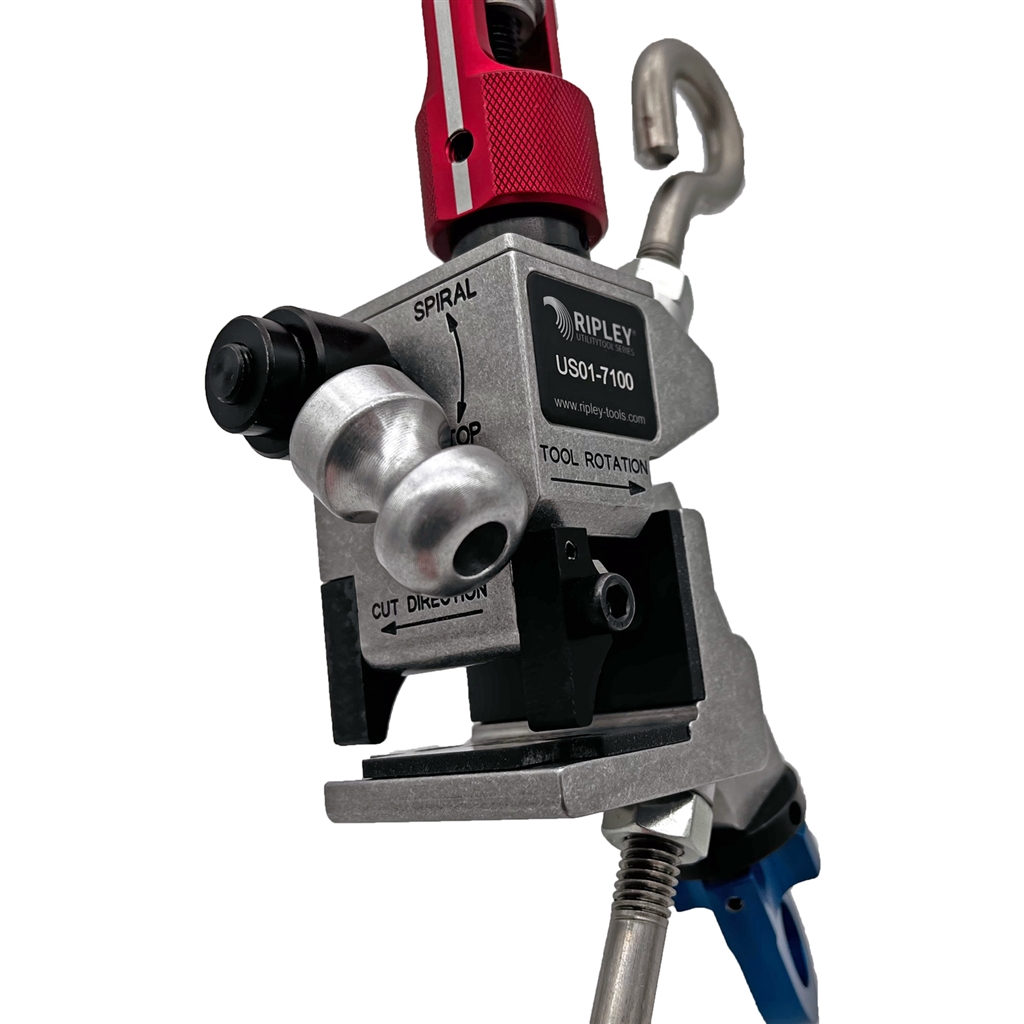

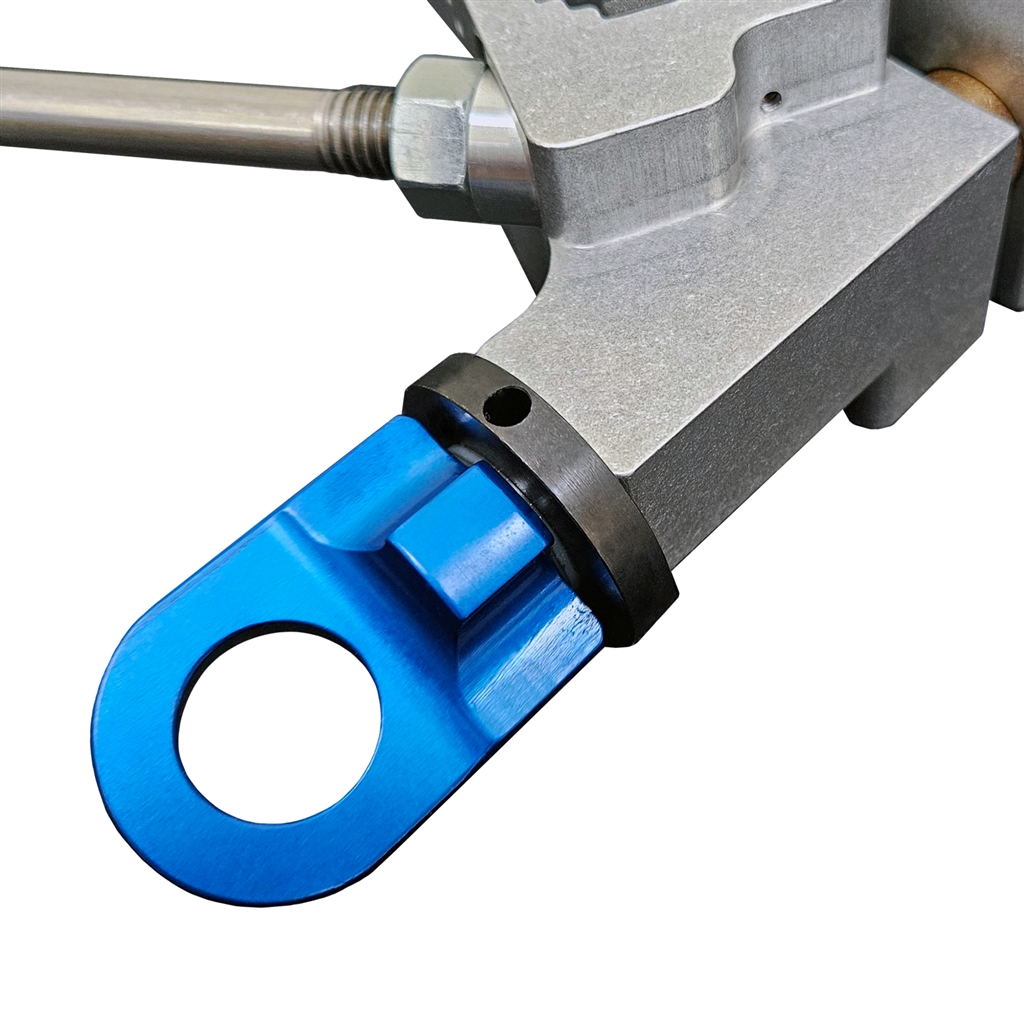

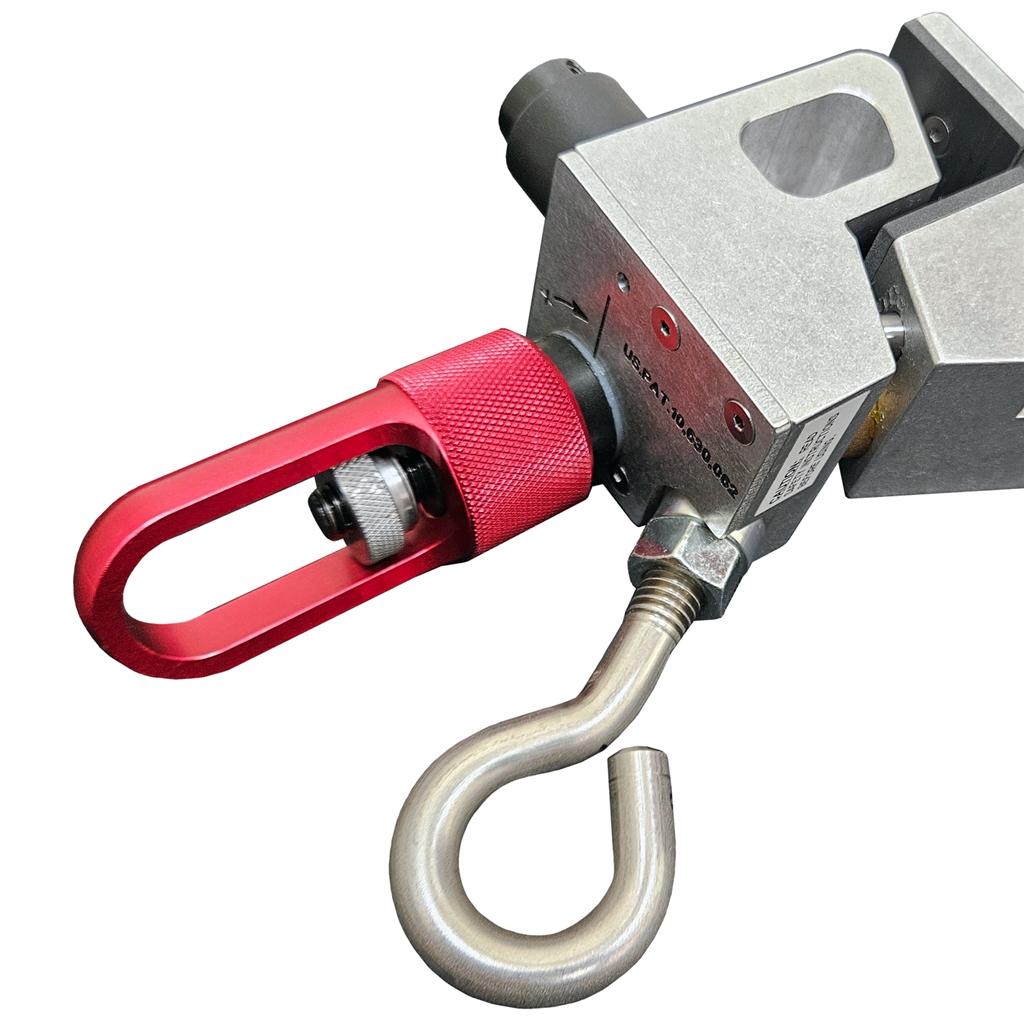

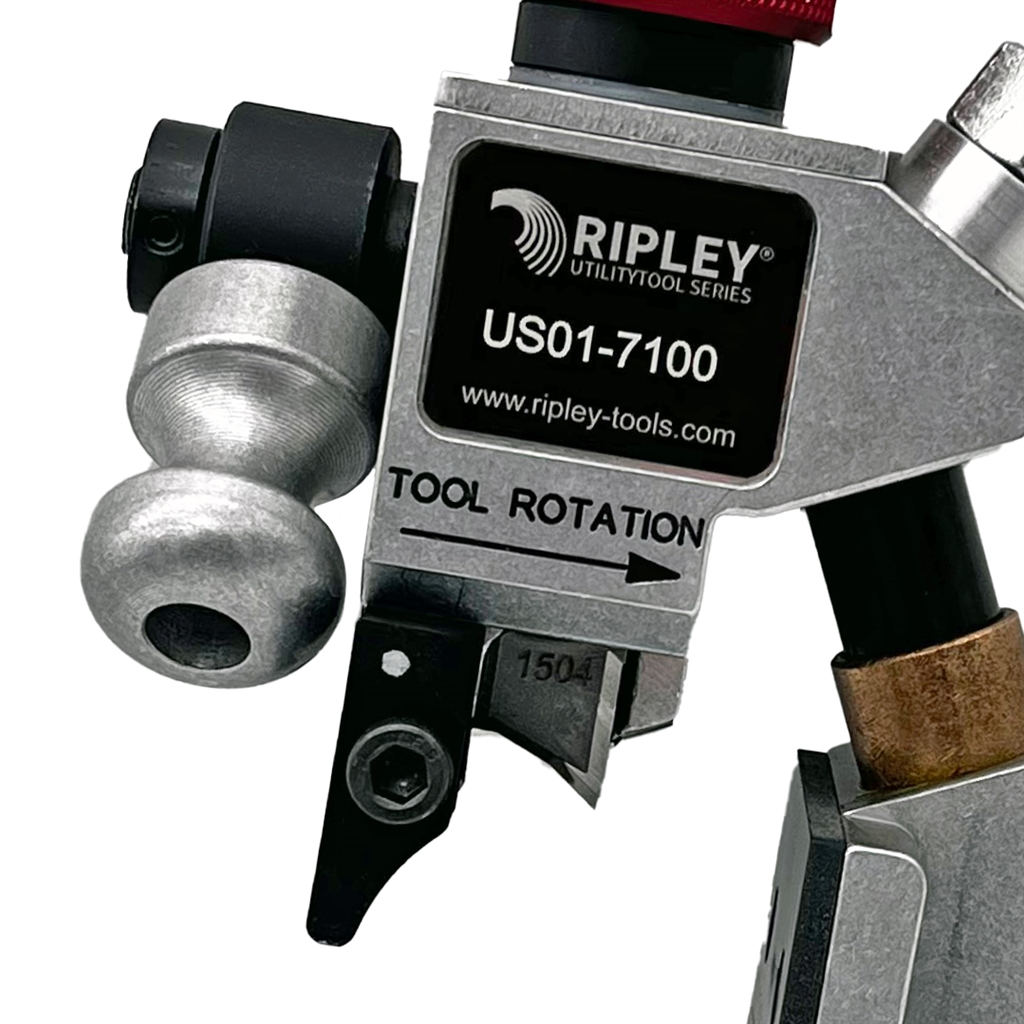

The UtilityTool US01-7100 is a next-generation adjustable overhead skinner built start to finish for linemen. Fully hotstick operable for live line work, it mid-span and end strips 15-35kV tree wire and spacer cable and eliminates the need for traditional stripping knives, reducing the risk of cuts or lacerations while delivering clean, consistent jacket and insulation removal. Oversized eye hooks accommodate shotgun sticks, and the ring/spiral selector switch is sized for disconnect sticks. High-visibility colored knobs provide set-and-forget blade positioning: the red depth knob features a reflective revolution marker readable at a distance, and the blue knob opens and closes the jaw. Ripley's design strips without spiraling during ring cuts, so jackets come off clean without a clamp.

Features:
  • Completely hotstick operable for live line work on 15-35kV overhead cable
  • Mid-span and end stripping of tree wire and spacer cable
  • Cable range: 0.560" (14.2 mm) to 2.5" (63.5 mm) outer diameter, 600V to 35kV

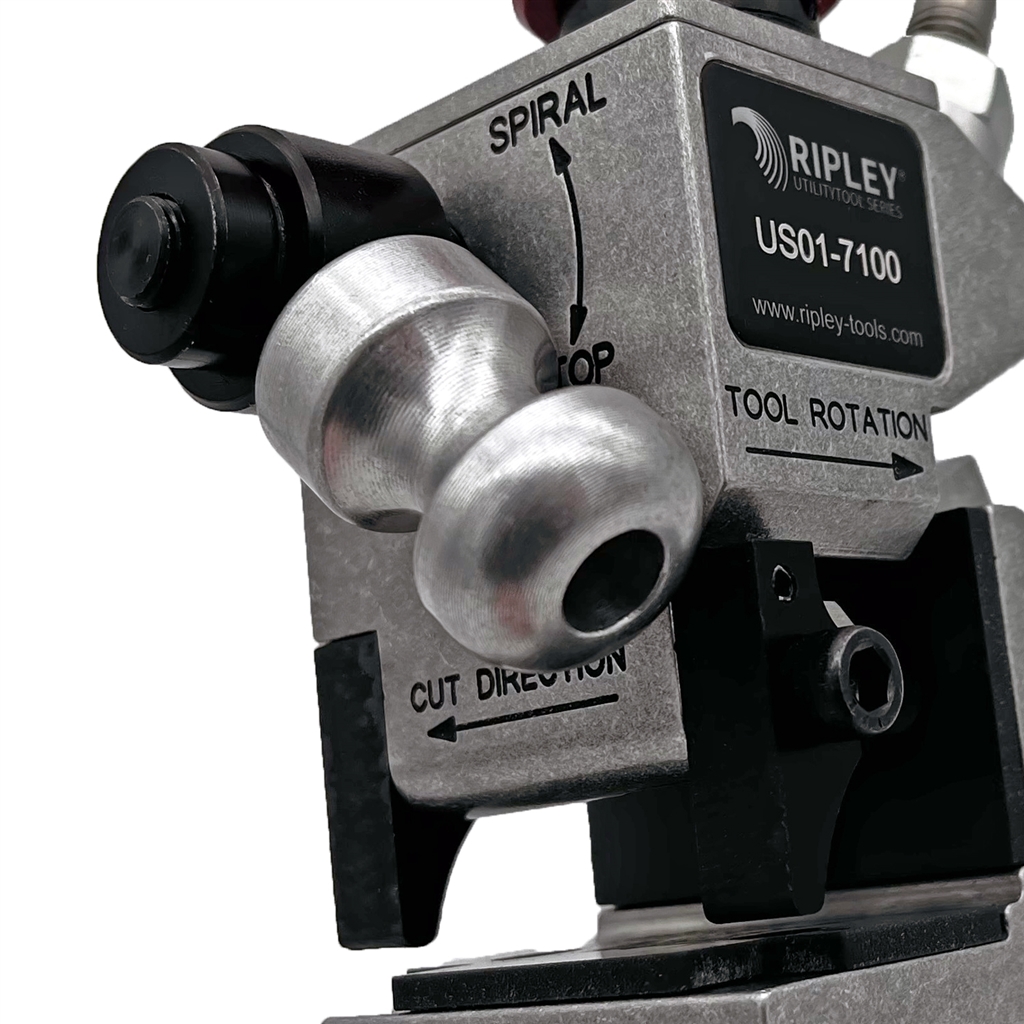

  • Selector switch toggles quickly between ring and spiral cuts
  • Set-and-forget colored knobs with standard depth stop for consistent strips

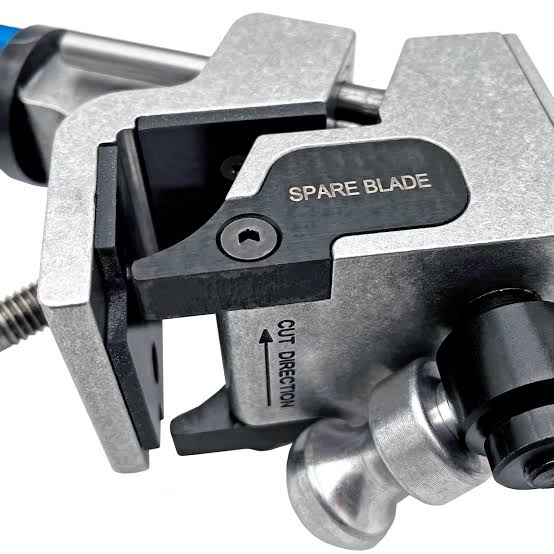

  • Built-in spare blade; field-replaceable blade
  • Reduced tool body weight from the original design for easier hotstick operation
  • Heavy duty tool removes jacket and insulation from overhead wire

  • Specifications:
  • Cable Compatibility: Primary Distribution Overhead, Tree Wire, Spacer Cables
  • Cable Access: Mid-Span, End
  • Min. Cable Outer Diameter: 0.560" (14.2 mm)
  • Max. Cable Outer Diameter: 2.5" (63.5 mm)
  • Voltage: 600 V - 35 kV
  • Material: Aluminum
  • Dimensions: 11.5" x 5.7" x 2.7" (292.1 x 144.8 x 68.6 mm)
  • Weight: 3.2 lb (1.45 kg)
  • Patent: U.S. Patent No. 10,630,062
  • Model: US01-7100
