UtilityTool by Ripley Tools WS 57 Adjustable Jacket and Insulation End Stripper - 45-115kV, 2-4.25in Cable

UtilityTool by Ripley Tools WS 57 Adjustable Jacket and Insulation End Stripper - 45-115kV, 2-4.25in Cable


Alternative Views:
TTS PRICE: $1,407.37

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 6-8 DAYS

PRODUCT CODE: UTIL-34320
QUANTITY:

PRODUCT DESCRIPTION

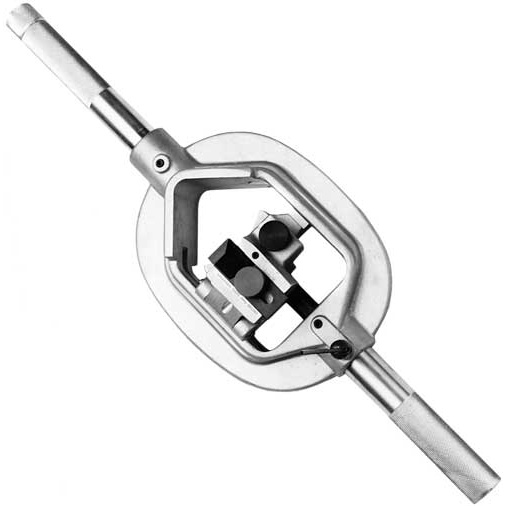

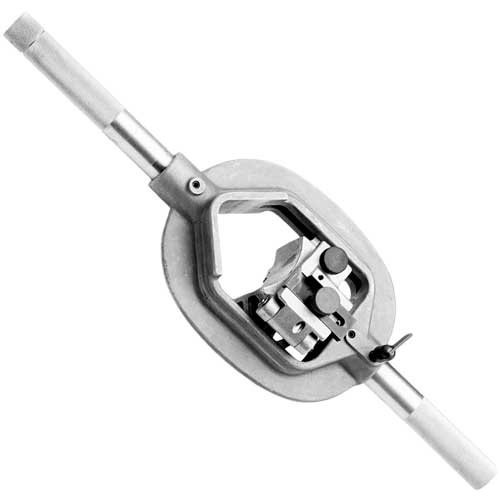

The UtilityTool WS 57 strips the outer jacket and insulation from 45-115 kV cable from 2.0in to 4.25in (50.8-108 mm) in diameter.
A quick-slide adjustment mechanism fits the cable fast, and adjustable blade depth and angle control the width of the end strip.

Built for transmission-class XLPE, EPR and PE cable, overhead or underground.

Features:
  • Jacket and insulation end stripping, 45-115 kV
  • Cable OD 2.0-4.25in (50.8-108 mm)
  • Quick-slide adjustment for different diameters
  • Adjustable blade depth and angle
  • XLPE, EPR and PE insulation

Specifications:
  • Model: Ripley UtilityTool WS 57 (34320)
  • Cable OD: 2.0-4.25in (50.8-108 mm)
  • Voltage: 45-115 kV
  • Material: Aluminum
  • Length: 24in (610 mm)
  • Weight: 7 lb (3.18 kg)
  • Replacement Blade: 34327
