Jonard Fiber Optic Power Meter w/ Data Storage

Jonard Fiber Optic Power Meter w/ Data Storage


TTS PRICE: $429.32

STATUS:  IN STOCK

Free Shipping

Availability:
IN STOCK & READY TO SHIP

PRODUCT CODE: JON-FPM-55
QUANTITY:

PRODUCT DESCRIPTION

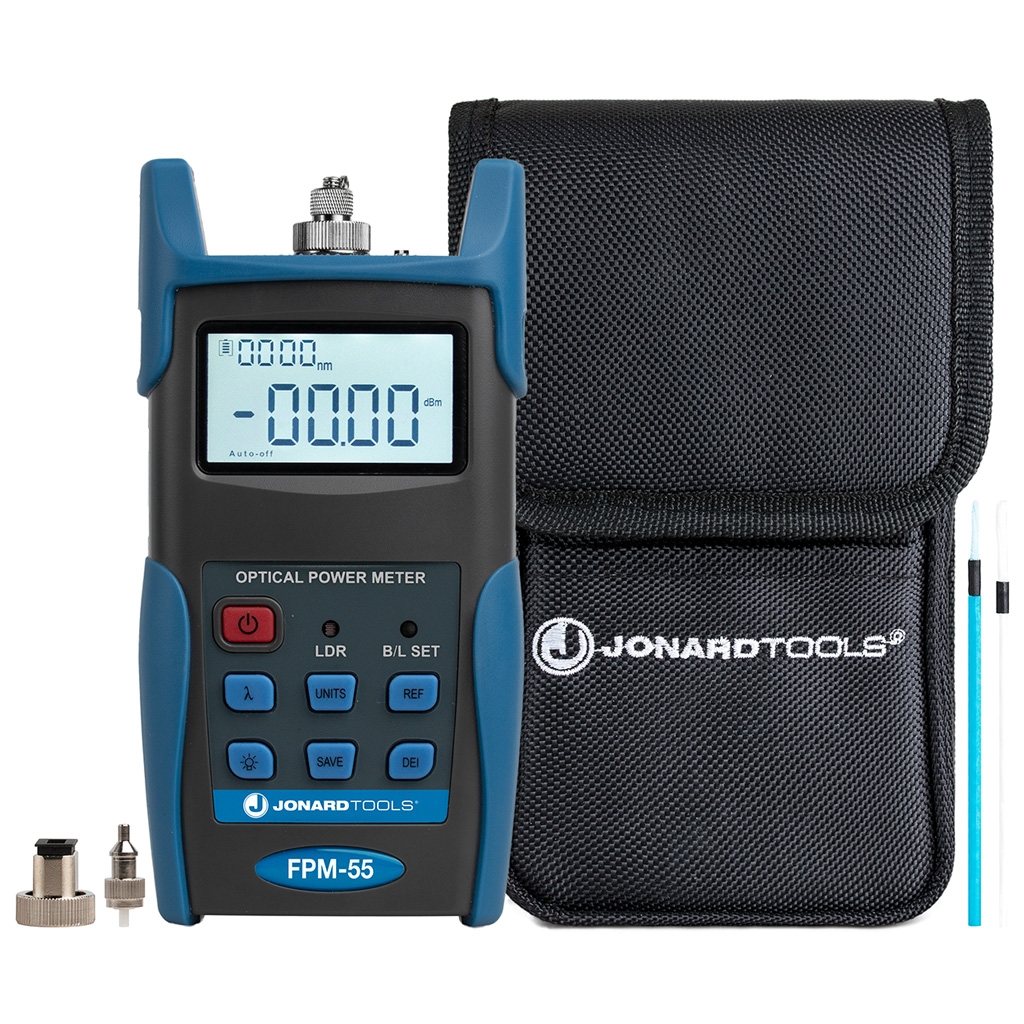

The FPM-55 from Jonard Tools is an intelligent Fiber power meter designed to measure absolute and relative power of fiber optic cables. The meter is able to measure and store a wide range of wavelengths to measure fiber optic cables with high precision, making it the ideal tool for use in fiber optic networks.

Features:
  • Measures a wide variety of wavelengths from 850-1650 nm, with a mere 0.01 dB resolution
  • Measures 8 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Intelligent backlight control adjusts the screen brightness automatically to reduce power consumption
  • Stores up to 1,000 data entries which can be downloaded via USB
  • Reference power level can be set up and stored via included software
  • Auto-off function can be turned on or off
  • Comes with FC, SC, and LC adapters so that fiber connectors can be directly connected to the tool
    • The FC/SC adapters are for APC/PC/UPC connectors
    • The LC adapter is for PC/UPC connectors only

    Specifications:
  • Connector Types: FC, SC (APC/PC/UPC) & LC (PC/UPC)
  • Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
  • Detector Type: InGaAs
  • Measurement Range: -50 dBm to +26 dBm
  • Single Mode Range: 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
  • Multi Mode Range: 850, 1300 nm, ≤ ± 0.8 dB
  • Data Storage Capacity: 1000 entries
  • Resolution: 0.01 dB
  • Operating Time: 200 hours (without backlight)
  • Battery Type: (3) AA batteries
  • Dimensions: 6.89" x 3.54" x 1.75" (175 mm x 90 mm x 44.5 mm)
  • Weight: 0.66 lb (300 g)

    • Included:
  • Power Meter with Storage
  • Manual
  • Protective Cover
  • 3 - AA batteries
  • Cotton Swabs
  • FC/SC/LC Adaptors
    •
