Jonard PoE & Cable Testing Tool

Jonard PoE & Cable Testing Tool


TTS PRICE: $108.32

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-POE-1
QUANTITY:

PRODUCT DESCRIPTION

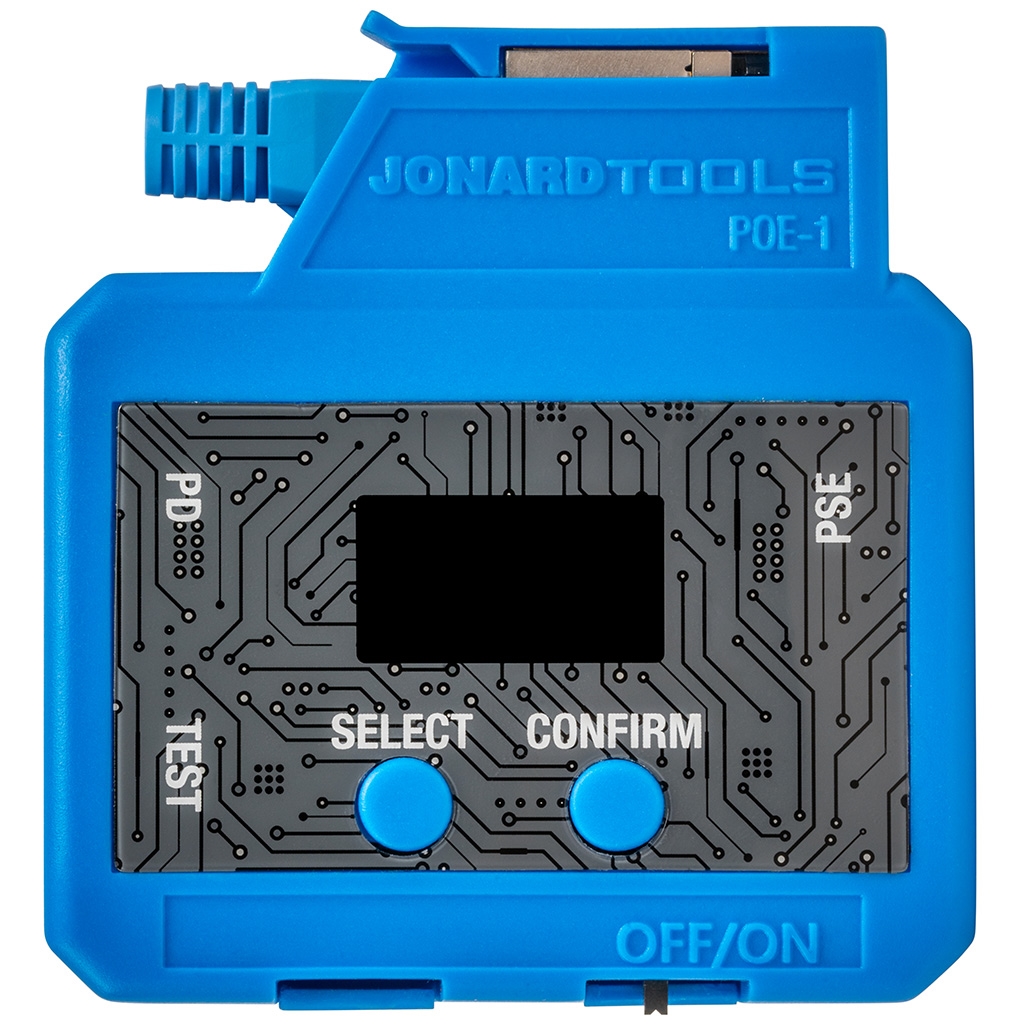

Jonard PoE-1 PoE & Cable Testing Tool - Verifies PoE Voltage/Current & CAT3-CAT8 Continuity

Jonard's POE-1 is engineered to tackle the dual challenges of PoE testing and network cable continuity verification. This all-in-one PoE tester is a real time-saver for network technicians and professionals: plug it in to confirm PoE is present and read the voltage, amperage and PoE standard, or check the resistance and continuity of CAT3 through CAT8 network cables with the included cable remote.

Features:
  • Instantly verify the presence of PoE and determine the voltage, amperage and standard of Ethernet cables, supporting Passive, 802.3af, 802.3at and 802.3bt
  • Verifies the resistance and continuity of CAT3 through CAT8 network cables, including Cat5, Cat5e, Cat6 and Cat6a
  • Can be used without a battery - PoE powers the tester
  • Tests the resistance and continuity of unpowered network cables using a AA battery as the power source
  • Durable construction built to endure challenging environments
  • Compact and lightweight for on-the-go use

    • Includes:
  • 1 x PoE tester
  • 1 x Cable remote
  • 1 x Female-female RJ45 adapter
  • 1 x Instruction manual

    • Specifications:
  • Connector Type: RJ45
  • Test Type: PoE, Continuity
  • PoE Range: 12 to 57 volts, 0 to 1500 mA
  • PoE Method: Passive (Simulated 802.3af)
  • PoE Standard: 802.3af/at
  • PoE Standards Supported: Passive, 802.3af, 802.3at, 802.3bt
  • Cable Type: CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT7, CAT7A, CAT8
  • Dimensions: 3" x 2" x 1" (7.62 cm x 5.08 cm x 2.54 cm)
  • Weight: 0.24 lb (109 g)
  • Model: PoE-1

    • Data Sheet - POE & Cable Testing Tool - POE-1 Jonard Tools POE-1 Instruction Manual
